Flow Measuring Devices Equipment

Product Description

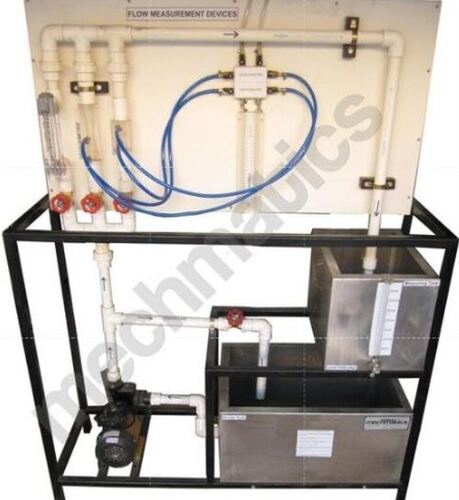

This apparatus is designed to introduce students to three basic types of flow meters:

• Venturimeter,
• Rotameter or Variable area meter
• Orifice meter
• Nozzle Meter (Optional)

A flow control valve permits variation of flow rate through the circuit. Pressure tapings are incorporated so that the head loss characteristics of each flow meter may be measured. These tapings are connected to an manometer bank incorporating a manifold with air bleed valve. The circuit and manometer are attached to a support framework.


Specifications:

• Sump tank capacity : 75 litres MOC: SS-304 with Matt Buffing
• Volumetric tank capacity : 40 litres. MOC: SS-304 with Matt Buffing
• Pump : Monoblock type, 0-60 litre/min, Motor 0.5 HP
• Piping with necessary Valves and Fittings
• Digital Stop Watch with 1/10 second Accuracy
• Detailed Technical Manual and On-site Training
