Send InquiryHele-Shaw Apparatus
Price 40000 INR/ Unit
MOQ : 1 Unit
Hele-Shaw Apparatus Specification
- Features
- Good Quality
- Power Supply
- manual
- Usage
- Industrial
- Size
- Standard Sizes
- Product Type
- Hele-Shaw Apparatus
- Voltage
- 110-215 Volt (v)
- Material
- MS
Hele-Shaw Apparatus Trade Information
- Minimum Order Quantity
- 1 Unit
- Main Domestic Market
- All India

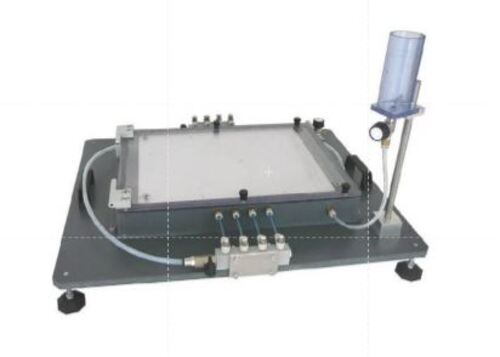

About Hele-Shaw Apparatus
This Apparatus is used to visualize streamline fields for flows around drag bodies. The streamlines are displayed in color by injecting a dye. Sources and sinks are generated via water connections in the bottom of the experimental plate. The streamlines can be clearly observed on the Perspex plate during flow around and flow through. The water flow rate and the quantity of dye injected can be adjusted by valves. Custom build models can also be ordered as per requirement.Specifications:1. Two perspex plates 2mm apart2. Water connections for inlet and drainage3. Experimental Area 400x280mm4. Any 3 opaque drag bodies of thickness 2mm5. Approx. 15 Dye holes6. Dye Tank 200mL7. Comprehensive Instruction Manual
Service Requirement:1. Clean, air-free water connection and drain
Tell us about your requirement
Price:
Quantity
Select Unit
- 50
- 100
- 200
- 250
- 500
- 1000+
Additional detail
Mobile number
Email
More Products in Fluid Mechanics Laboratory Equipment Category
Thermal Dispersion Setup
Price 50000 INR / Unit
Minimum Order Quantity : 1 Unit
Features : Good Quality
Size : Standard Sizes
Material : MS
Product Type : Thermal Dispersion Setup
Weir Notch Flow Measurement
Price 18500 INR / Unit
Minimum Order Quantity : 1 Unit
Features : Good Quality
Size : Standard Sizes
Material : MS
Product Type : Flow Measuring Instrument

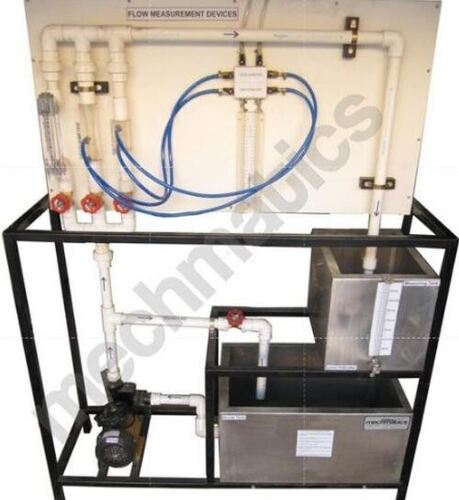

Electromagnetic Flow Measuring Devices
