Journal Bearing Apparatus Test Rig
Journal Bearing Apparatus Test Rig

Journal Bearing Apparatus Test Rig

Price 48000 INR/ Unit

MOQ : 1 Unit

Journal Bearing Apparatus Test Rig Specification

  • Shape
  • Rectangular
  • Power Supply
  • Electric
  • Features
  • Good Quality
  • Usage
  • Industrial
  • Type
  • Journal Bearing Apparatus
  • Size
  • Standard Sizes
  • Voltage
  • 110-215 Volt (v)
  • Material
  • MS


Journal Bearing Apparatus Test Rig Trade Information

  • Minimum Order Quantity
  • 1 Unit
  • Delivery Time
  • 5-10 Days
  • Main Domestic Market
  • All India


About Journal Bearing Apparatus Test Rig

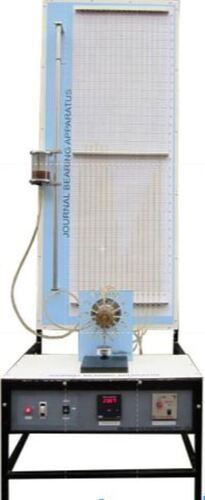

The MECHMATICS journal bearing apparatus for investigating the distribution of pressure in slide bearings illustrates the principle of hydrodynamic lubrication.

The distribution of pressure and the carrying capacity can be determined on a sliding bearing model at different bearing loads and speeds. The sliding bearing consists of a bearing journal driven by an electrical motor and the freely moving bearing housing. The bearing is loaded with different, interchangeable weights.

In order to view the shifting of the bearing journal in operation as clearly as possible, the model has a large gap and a transparent housing. Both the radial and axial distribution of pressure can be recorded in the bearing gap at 12 measuring points around its perimeter and 5 along the length. The measurements are shown by means of 16 tube manometers mounted on a board.
Specifications:
  • Variable Speed Controller Motor
  • Forward Reverse Switch
  • Digital RPM Indicator

Service Required:
  • Rigid platform or sturdy table with preferably a solid foundation
Tell us about your requirement
product

Price:

Quantity
Select Unit

  • 50
  • 100
  • 200
  • 250
  • 500
  • 1000+
Additional detail
Mobile number

Email

More Products in Dynamic Apparatus Category

Davis Steering Mechanism Teat Rig

Davis Steering Mechanism Teat Rig

Price 4000.0 INR / Unit

Minimum Order Quantity : 1 Unit

Power Supply : manual

Features : Good Quality

Material : MS

Size : Standard Sizes

Watt Straight Line Mechanism Model

Watt Straight Line Mechanism Model

Price 5500 INR / Unit

Minimum Order Quantity : 1 Unit

Power Supply : manual

Features : Good Quality

Material : MS

Size : Standard Sizes

Oscillating Cylinder Mechanism

Oscillating Cylinder Mechanism

Price 6500 INR / Unit

Minimum Order Quantity : 1 Unit

Power Supply : manual

Features : Good Quality

Material : MS

Size : Standard Sizes

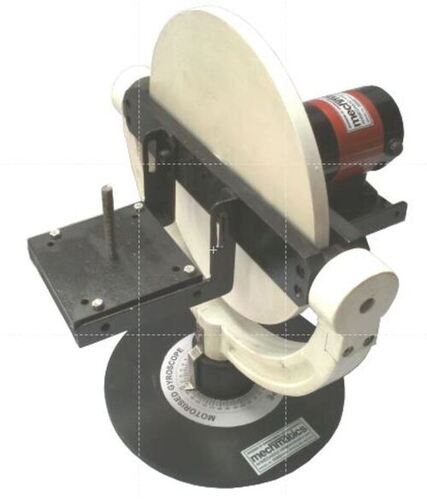

Motorized Gyroscope
