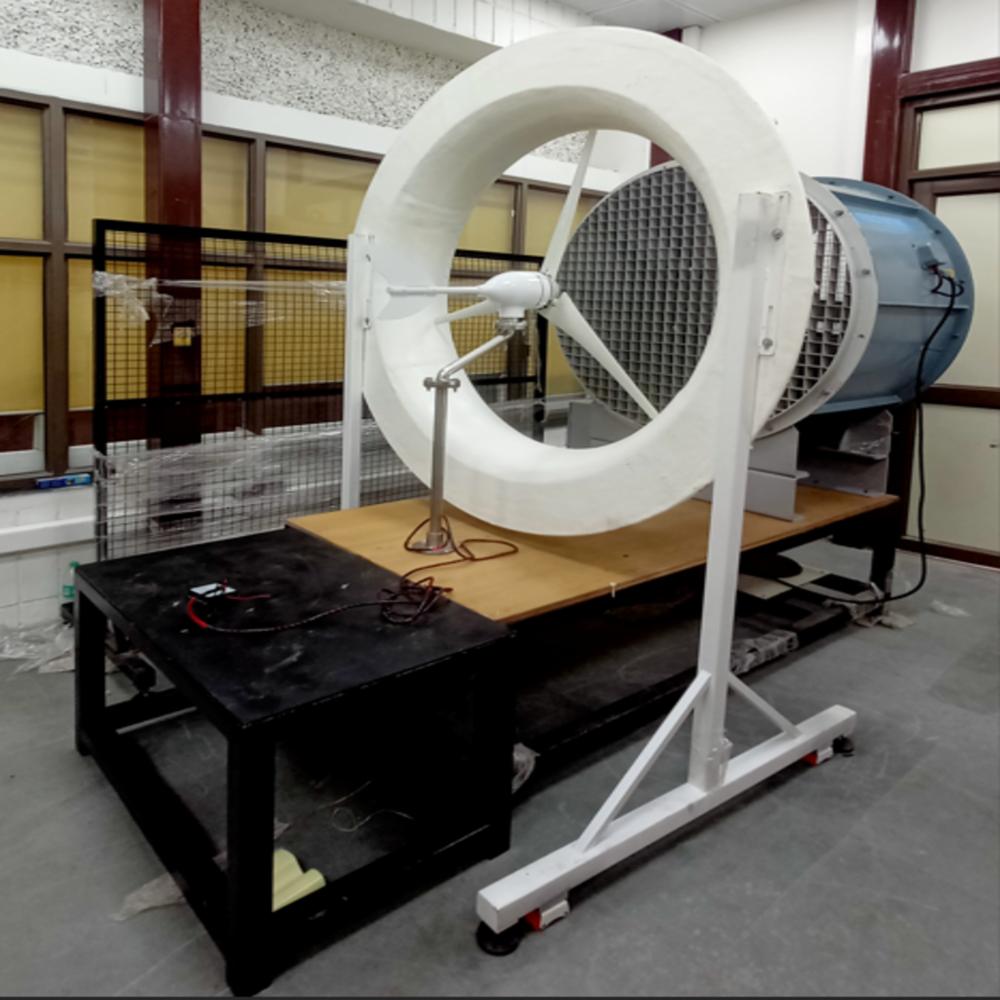

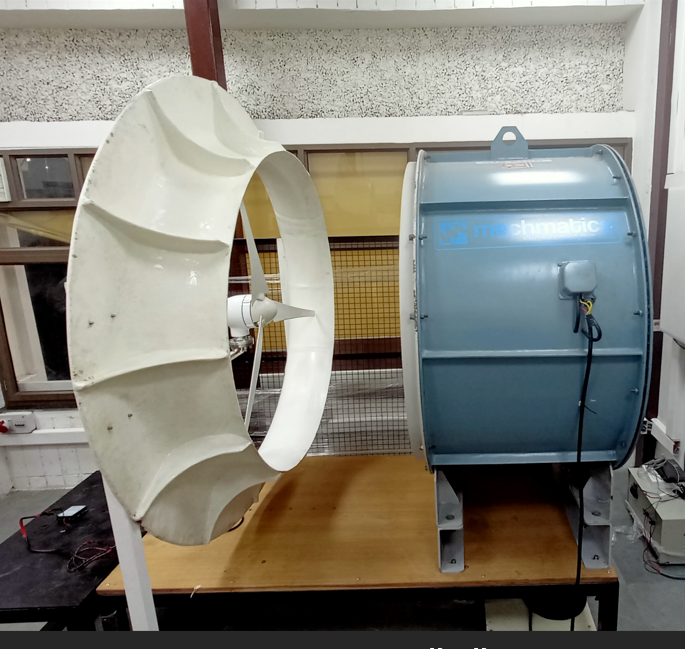

Wind Lens

About Wind Lens

Product Overview

Wind Lens Technology is an advanced aerodynamic enhancement system used in modern wind turbines to significantly improve wind energy capture efficiency. The technology utilizes a specially designed diffuser shroud structure around the turbine rotor that accelerates incoming airflow and increases power generation efficiency.

The Wind Lens design creates a low-pressure region behind the turbine blades, enabling higher wind velocity through the rotor area and improving overall turbine performance even at lower wind speeds.

This technology is ideal for:

• Small & medium wind turbines
• Urban wind power systems
• Rooftop wind applications
• Hybrid renewable energy plants
• Research & educational applications

Key Features

• Enhanced wind velocity concentration
• Increased turbine power output
• Improved low-wind-speed performance
• Compact aerodynamic structure
• Reduced aerodynamic losses
• Low-noise turbine operation
• Improved energy conversion efficiency
• Safer blade enclosure design

Advantages of Wind Lens Technology

Higher Energy Generation

• Increases wind turbine output efficiency
• Higher energy generation at low wind speeds
• Improved rotor performance and stability
• Better utilization of available wind energy

Aerodynamic Benefits

• Accelerates airflow through rotor section
• Reduces wake turbulence
• Enhances pressure differential around blades
• Improves turbine starting characteristics

Environmental Benefits

• Lower noise emission compared to conventional turbines
• Reduced vibration during operation
• Compact structure suitable for urban environments
• Environment-friendly renewable energy enhancement

Operational Benefits

• Better performance in unstable wind conditions
• Improved turbine safety due to outer shroud
• Reduced maintenance requirements
• Longer operational lifespan



 Technical Specifications

Wind Lens System Specifications

Parameter	Specification
Technology Type	Diffuser-Augmented Wind Turbine
Rotor Configuration	Horizontal Axis
Lens Material	FRP / Aluminium Composite
Turbine Capacity Range	500 W 100 kW
Rotor Diameter Range	0.5 m 15 m
Wind Speed Operating Range	2 25 m/s
Wind Concentration Efficiency	Up to 2x Airflow Increase
Power Enhancement	1.5x3x Compared to Conventional Turbine
Noise Reduction	Up to 40% Lower Noise
Structural Design	Circular Diffuser with Brim



Numerical Performance Ranges

Parameter	Typical Range
Cut-in Wind Speed	2 3 m/s
Rotor RPM	100 900 RPM
Efficiency Improvement	30% 200%
Power Coefficient (Cp)	0.45 0.65
Operating Temperature	20C to +70C
Noise Level	< 50 dB
System Efficiency	80% 95%



Working Principle

The Wind Lens system uses a diffuser structure to create accelerated airflow around the turbine rotor.

Wind Velocity Enhancement

Since wind power is proportional to the cube of wind velocity, even a small increase in airflow speed results in significantly higher power generation.

Wind Power Equation

Where:

• = Wind Power
• = Air Density
• = Rotor Swept Area
• = Wind Velocity
• = Power Coefficient



Applications

• Urban Wind Energy Systems
• Rooftop Wind Turbines
• Smart Cities
• Hybrid Solar-Wind Plants
• Remote Area Electrification
• Telecom Power Systems
• Educational & Research Laboratories
• Residential Renewable Energy Systems

Comparison with Conventional Wind Turbines

Feature	Conventional Turbine	Wind Lens Turbine
Low Wind Performance	Moderate	Excellent
Noise Level	Higher	Lower
Power Output	Standard	Enhanced
Safety	Open Rotor	Enclosed Rotor
Energy Efficiency	Normal	Higher
Urban Suitability	Limited	Highly Suitable

Revolutionize Turbine Performance

Upgrade your wind energy systems with the Wind Lens, designed to significantly amplify the power output of existing turbines. Its torus-shaped diffuser harnesses and accelerates wind flow, making renewable energy generation more efficient and reliable, even at lower wind speeds.


Seamless Installation and Maintenance

The Wind Lens integrates effortlessly onto turbine blades using provided brackets and fasteners, requiring no complex modifications. Its FRP material ensures high corrosion resistance and low maintenance, with only occasional periodic inspections necessary for long-term, trouble-free operation.


Noise Reduction and Enhanced Durability

Operating between -20C and 60C, the Wind Lens remains robust in diverse environments while mitigating turbulence and drastically reducing operational noise. The UV-resistant coating further shields the device, promising enhanced longevity and performance in harsh weather conditions.
