Cone

About Cone

Overview

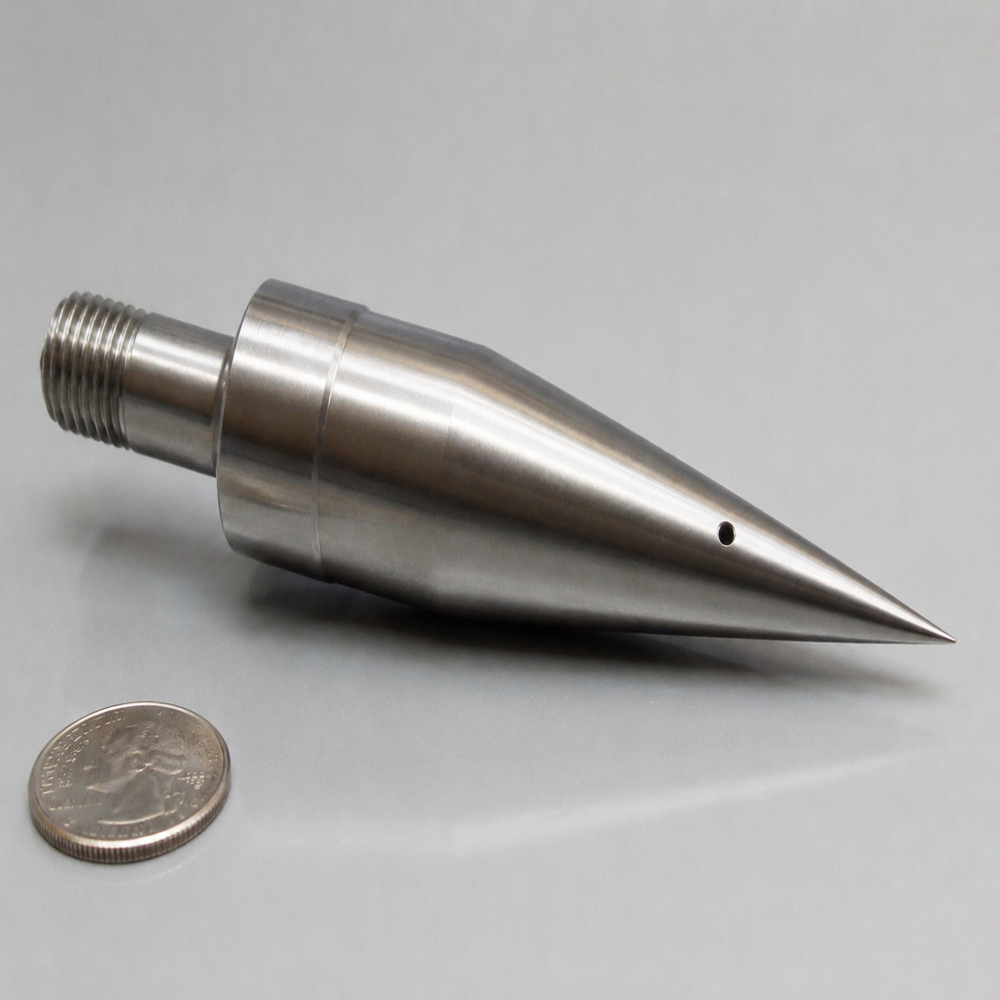

A precision cone probe for supersonic and transonic flow testing, designed for accurate shock wave and pressure measurements. The model is easily integrated into wind tunnel setups via a sting-mounted threaded interface.

 Key Features

• Standard Geometry: 15 half-angle for reliable shock formation
• Custom Angles Available: Tailored to specific test requirements
• Integrated Pressure Measurement: Face-mounted pressure tap(s)
• Quick Installation: Threaded string mounting
• High-Precision Manufacturing

Technical Datasheet (Typical)

• Half-Angle: 15 (custom options available)
• Pressure Taps:
• Standard: 1 face tap
• Optional: Multiple taps
• Mounting: Sting-mounted with threaded base
• Material: High-strength metal (application dependent)

Optional Features

• Additional pressure taps and instrumentation
• Custom-designed cone geometries
• Handcrafted models and probes to specification

Applications

• Mach number and shock angle determination
• Supersonic/transonic wind tunnel calibration
• Pressure distribution studies
