Flat Plate and Mouse

About Flat Plate and Mouse

Overview

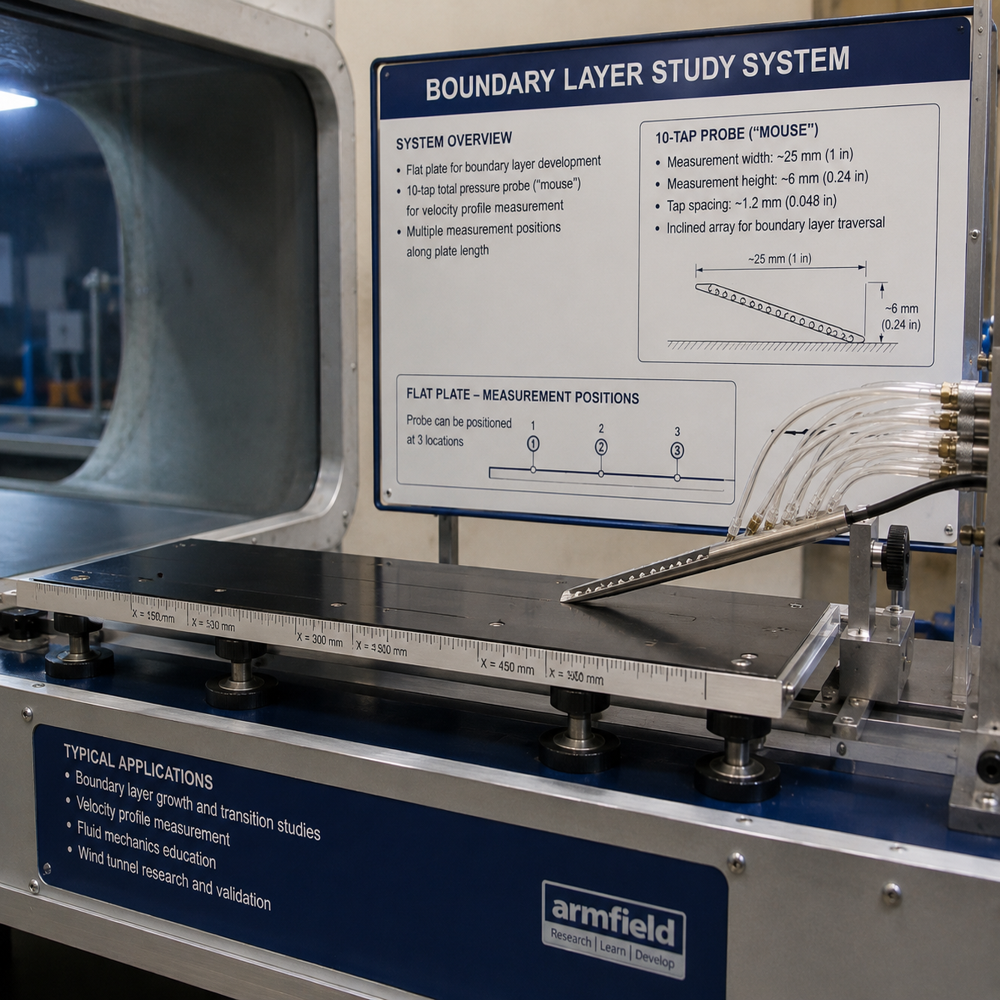

A specialized boundary layer study system designed for clear demonstration and measurement of boundary layer development and growth. The setup combines a precision flat plate with a multi-point total pressure probe (mouse), enabling detailed velocity profiling at multiple locations along the plate.

Key Features

• Boundary Layer Visualization & Measurement in a single setup
• 10-Tap Total Pressure Probe (Mouse) for velocity profiling
• Multiple Measurement Positions: Probe relocatable along plate length
• Compact, High-Resolution Probe Geometry
• Compatible with Standard Wind Tunnel Setups

Technical Datasheet (Typical)

Flat Plate

• Type: Smooth flat plate for boundary layer development
• Measurement Positions: 3 selectable locations along length

Boundary Layer Probe (Mouse)

• Type: 10-tap total pressure probe
• Probe Arrangement: Inclined array for boundary layer traversal
• Measurement Width: ~25 mm (1 in)
• Measurement Height: ~6 mm (0.24 in)
• Tap Spacing: ~1.2 mm (0.048 in) along diagonal

Performance

• Application Range: Low-speed (subsonic) flow studies
• Use Case: Boundary layer thickness and velocity profile measurement
• Resolution: High spatial resolution near surface

Optional Features

• Additional probe configurations or tap counts
• Integrated data acquisition systems
• Custom plate sizes and materials
• Handcrafted custom models and probes

Applications

• Boundary layer growth and transition studies
• Velocity profile measurement
• Fluid mechanics education and demonstrations
• Wind tunnel research and validation

Customization

The system can be tailored to specific tunnel sizes, flow conditions, and measurement requirements, including probe geometry and plate dimensions.
