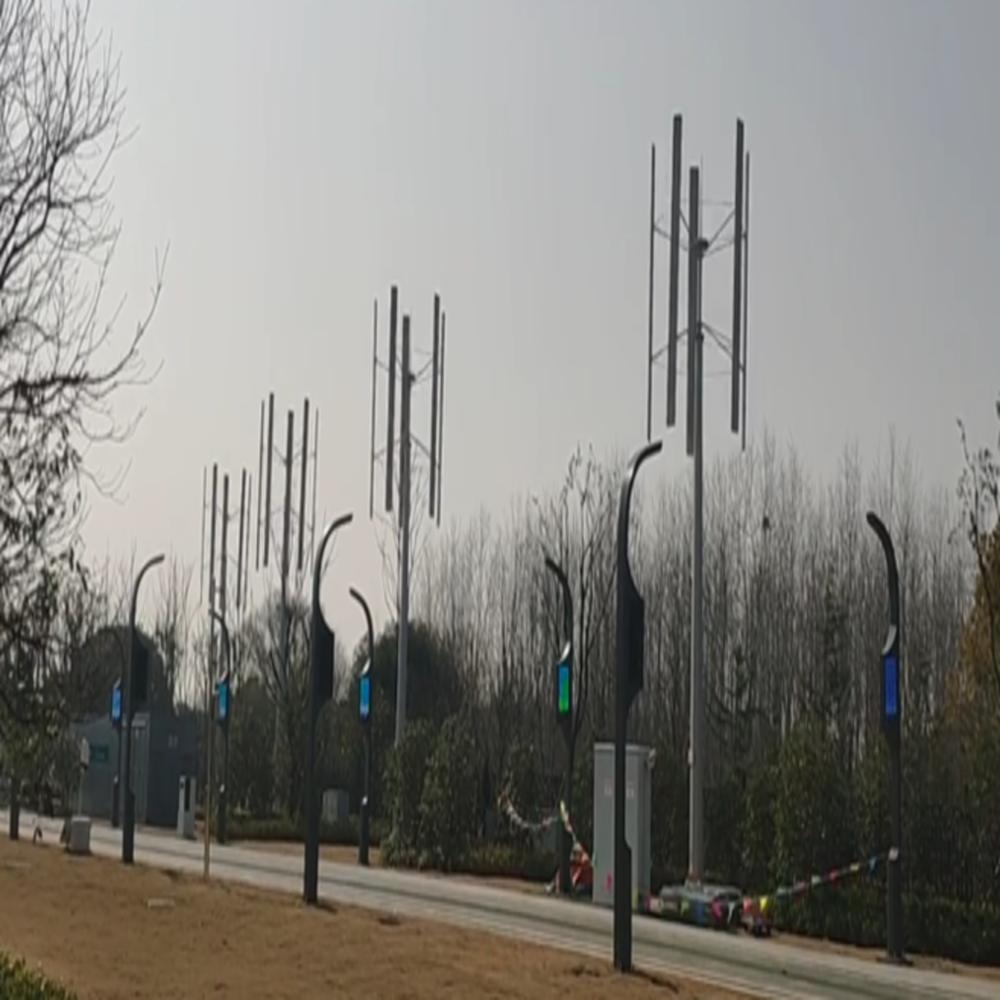

Vertical Axis Wind Turbine

Name: Vertical Axis Wind Turbine
Brand: MECHMATICS ENGINEERING PVT. LTD.
Price: 500000.0 INR
Availability: InStock

Price 500000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Vertical Axis Wind Turbine Specification

Material
Aluminum Alloy, Stainless Steel

Processing Type
Precision Machining

Condition
New

Technology
Vertical Axis Wind Turbine (VAWT)

Dimension (L*W*H)
800mm x 800mm x 1800mm

Power Mode
Wind Powered

Voltage
24V / 48V DC (Customizable)

Power Consumption
Self-generating, Not Applicable

Application
Power Generation, Remote Power Supply, Off-grid Systems, Residential & Commercial Use

Coating Type
Corrosion-Resistant Powder Coating

Accessories
Tower, Inverter, Controller, Blades, Mounting Kit

Start-up Wind Speed
2.5 m/s

Lifespan
>20 Years

Equipment Type
Vertical Axis Wind Turbine

Number of Blades
3

Survival Wind Speed
50 m/s

Rotor Type
Savonius-Darrieus Hybrid

Noise Level
<45 dB

Rated Power Output
1000W

Control System
Automatic Tail Alignment with Over-Speed Protection

Insulation Class
F

Mounting Type
Ground/ Roof/ Pole Mounted

Rotor Diameter
800 mm

Vertical Axis Wind Turbine Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
10-15 Days

About Vertical Axis Wind Turbine

Technical Specs	Description
Turbine volume	1.16 meter diameter, 1.6 meter height.
Blade Material	Aluminium alloy, weather-resistant coating
Rated output	500w at 12m/s
Peak output	510W
Cut-in speed	1.5 m/s

Efficient Power Generation for Diverse Needs

This 1000W VAWT is engineered for continuous power supply, catering to remote, off-grid, and grid-independent requirements in residential and commercial environments. Its hybrid rotor design ensures stable energy production across a wide range of wind speeds, making it ideal for varied climate zones.

Robust and Quiet Operation

Built with high-grade aluminum alloy and stainless steel, the turbine withstands harsh weather and achieves a survival wind speed of up to 50 m/s. The automatic tail alignment and over-speed protection maximize efficiency while maintaining noise levels below 45 dB, ensuring minimal disturbance to inhabitants.

FAQ's of Vertical Axis Wind Turbine:

Q: How does the Savonius-Darrieus hybrid rotor enhance wind turbine efficiency?

A: The Savonius-Darrieus hybrid rotor merges the high starting torque of the Savonius design with the efficient rotational speed of the Darrieus type. This integration allows the turbine to start at low wind speeds (2.5 m/s) and maintain steady power output, leading to improved overall efficiency and energy capture compared to single-type rotors.

Q: What installation options are available for this vertical axis wind turbine?

A: This turbine offers versatile mounting options; it can be installed on the ground, rooftop, or mounted on a pole. The compact dimensions (800mm x 800mm x 1800mm) and comprehensive mounting kit simplify set-up in residential yards, commercial facilities, or remote locations.

Q: When can the wind turbine start generating electricity?

A: The wind turbine begins generating power as soon as wind speeds reach at least 2.5 meters per second, thanks to its low start-up threshold and efficient rotor design. This means it can produce electricity even in areas with mild wind conditions.

Q: Where is the best environment to use this 1000W vertical axis wind turbine?

A: This wind turbine can operate efficiently in a variety of environments, including residential neighborhoods, remote locations, rural properties, off-grid installations, and commercial sites. Its quiet operation and compact size make it suitable for both urban and rural applications.

Q: What is the process for maintaining the turbine, and what is its expected lifespan?

A: Maintenance requirements are minimal due to the robust aluminum alloy and stainless steel construction with a corrosion-resistant powder coating. Periodic inspections and cleaning are recommended. With proper care, the turbine's lifespan exceeds 20 years.

Q: How is the generated power utilized and what are common applications?

A: Generated electricity can be used for direct power supply in homes, businesses, and remote systems, or stored in batteries via the controller and inverter provided. Typical applications include powering off-grid homes, remote equipment, telecom towers, and supplementing existing electrical systems.

Q: What are the primary benefits of choosing this vertical axis wind turbine?

A: Key advantages include high efficiency in variable wind conditions, low operational noise (<45 dB), durable materials, easy installation, automatic protection systems, and a long service life, all contributing to reliable, sustainable, and maintenance-friendly energy generation.
