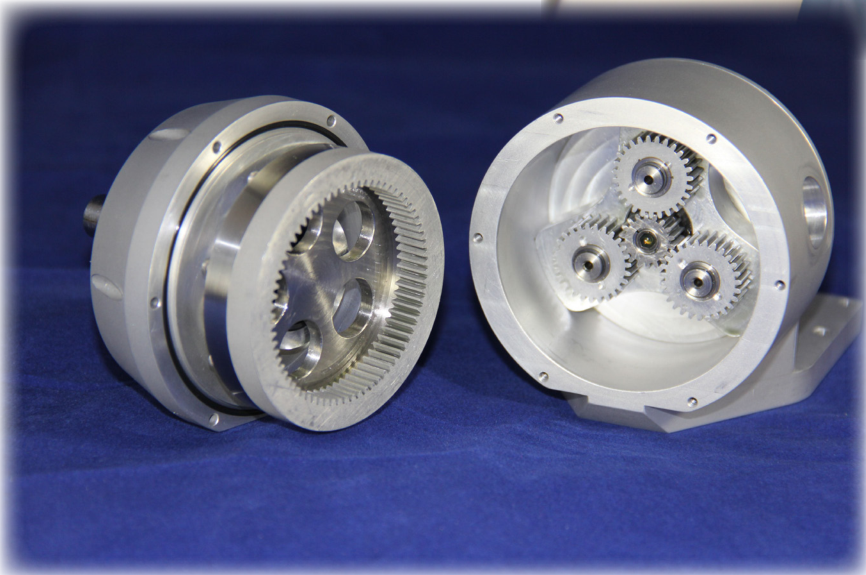

Wind Turbine Gear Trainer

Name: Wind Turbine Gear Trainer
Brand: MECHMATICS ENGINEERING PVT. LTD.
Price: 500000.0 INR
Availability: InStock

Price 500000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Wind Turbine Gear Trainer Specification

Equipment Type
Wind Turbine Gear Trainer

Material
Mild Steel, Aluminum, Acrylic (Display Panel)

Processing Type
Assembled

Condition
New

Technology
Demonstration of Wind Turbine Gear Mechanism

Dimension (L*W*H)
900 mm x 650 mm x 1000 mm

Power Mode
Manual and Electric Drive Option

Voltage
220V AC, 50Hz

Power Consumption
Less than 80W (Electric Motor Only)

Application
Educational and Training Purposes

Coating Type
Powder Coated Frame

Accessories
Instruction Manual, Tool Kit, Set of Weights, Connecting Cables

User Manual Language
English

Net Weight
Approx. 48 kg

Rotor Type
2 or 3 Bladed Propeller, Transparent Material

Learning Modules
Gear Ratio, Efficiency Calculation, Braking System Demonstration

Control Panel
Integrated Display for Speed and Output Indications

Transmission Type
Gear Train Mechanism (Spur and Helical)

Safety Features
Protective Safety Shield for Moving Parts

Mounting
Table Top Design

Base Structure
Anti-slip Rubber Feet

About Wind Turbine Gear Trainer

Product Overview

The Wind Turbine Gear Trainer is an advanced educational and industrial training system designed to demonstrate the mechanical power transmission mechanism used in modern wind turbines. The setup enables practical study of gear train arrangements, speed multiplication, torque transmission, and generator coupling used in wind energy systems.

The trainer provides hands-on understanding of:

Wind turbine gearbox operation
Gear ratio analysis
Torque transmission
Speed multiplication principles
Mechanical efficiency calculations
Power transmission characteristics
Renewable energy drivetrain systems

The system is ideal for engineering laboratories, renewable energy institutes, technical training centers, and industrial skill development programs.

Key Features

Real-time gear transmission demonstration
Industrial-grade gear train assembly
Variable speed input arrangement
Transparent safety enclosure
High-precision mechanical components
Compact educational design
Modular and easy-to-operate setup
Suitable for mechanical & renewable energy studies

Advantages

Educational Advantages

Practical understanding of wind turbine drivetrain systems
Demonstrates real industrial gearbox operation
Simplifies gear ratio and torque concepts
Ideal for renewable energy laboratory experiments
Enhances hands-on technical learning

Technical Advantages

Smooth and stable gear transmission
High mechanical efficiency
Accurate RPM and torque analysis
Rugged industrial construction
Low-maintenance mechanical system

Operational Advantages

Easy installation and operation
Safe enclosed mechanism
Compact laboratory footprint
Long operational life
Reliable continuous performance

Technical Specifications

Gear Transmission Specifications

Parameter	Specification
System Type	Wind Turbine Gear Transmission Trainer
Gear Arrangement	Spur / Helical Gear Train
Gear Ratio Range	1:2 to 1:12
Input Drive	Variable-Speed Motor
Output Coupling	Generator / Load Coupling
Transmission Type	Multi-stage Gearbox
Shaft Material	EN8 / Alloy Steel
Gear Material	Hardened Steel
Mounting Structure	Powder Coated MS Frame
Bearing Type	Heavy-Duty Ball Bearings

Mechanical Specifications

Parameter	Specification
Input Speed Range	100 1500 RPM
Output Speed Range	300 6000 RPM
Torque Capacity	5 100 Nm
Mechanical Efficiency	Up to 95%
Noise Level	Low-Noise Precision Gear System
Lubrication Type	Oil/Grease Lubricated
Operating Temperature	10C to +60C

Electrical Specifications

Parameter	Specification
Motor Power	0.5 HP 3 HP
Power Supply	230V AC / 415V AC
Frequency	50 Hz
Drive Control	Variable Frequency Drive (VFD)
Protection System	Overload Protection
Display Parameters	RPM / Torque / Speed Ratio

Numerical Operating Ranges

Operating Parameter	Typical Range
Gear Ratio	1:2 1:12
Input Torque	5 100 Nm
Transmission Efficiency	80% 95%
Shaft Speed	100 6000 RPM
Mechanical Power	100 W 5 kW
Bearing Life	20,000 50,000 Hours
System Noise	< 60 dB

Performance Equations

Gear Ratio Relationship

Mechanical Power Transmission

Where:

= Mechanical Power
= Torque
= Angular Velocity

Transmission Efficiency

Experimental Capabilities

Gear ratio analysis
Torque transmission study
Speed multiplication experiments
Mechanical efficiency measurement
Wind turbine drivetrain simulation
Load variation testing
Generator coupling analysis

Applications

Mechanical Engineering Laboratories
Renewable Energy Training Centers
Polytechnic Institutes
Technical Universities
Industrial Skill Development Centers
Wind Energy Research Labs
Gearbox Transmission Studies

Optional Accessories

Digital Torque Sensor
RPM Indicator
Data Acquisition System
PLC-Based Monitoring
IoT Monitoring System
Transparent Acrylic Guard
Variable Electrical Load Unit

Integrated Learning Modules

This wind turbine gear trainer includes multiple learning modules for an in-depth educational experience. Users can study gear ratios, efficiency calculations, and braking system demonstrations-all essential for understanding wind turbine operations. Transparent materials further enhance instruction by allowing users to visualize gear movement and transmission mechanisms.

Robust and Safe Construction

Engineered for both safety and durability, the trainer features a powder-coated mild steel frame, rubber anti-slip feet, and a protective safety shield that encloses moving parts. The table-top assembly supports effortless installation in modern classrooms or laboratories, ensuring secure and worry-free usage during demonstrations and hands-on training.

Versatile Power and Control Options

With both manual and electric drive capabilities, the trainer adapts to various educational settings and user preferences. The electric component operates at less than 80W with a standard 220V AC supply, allowing for safe, efficient, and versatile usage. The integrated control panel presents real-time speed and output data to reinforce theoretical lessons with practical visual feedback.

FAQ's of Wind Turbine Gear Trainer:

Q: How does the Wind Turbine Gear Trainer demonstrate gear ratios and efficiency?

A: The trainer uses a visible gear train consisting of spur and helical gears. By rotating the rotor (manual or electric), students can observe output speed and calculate gear ratios and efficiency based on actual mechanical movement and integrated display readings.

Q: What educational benefits does this trainer offer?

A: It allows students to gain hands-on experience with the core mechanical principles of modern wind turbines, including gear transmission, braking systems, and efficiency optimization, all of which are essential for renewable energy education and vocational training.

Q: When is the best time to use the trainer in an academic setting?

A: This equipment is ideal for laboratory sessions, technical workshops, and demonstrations during courses that cover renewable energy, mechanical engineering, or power systems. It enables practical reinforcement of theoretical concepts at any stage of the curriculum.

Q: Where can this gear trainer be set up?

A: Designed as a table-top unit with anti-slip feet, it fits conveniently in classrooms, training labs, or demonstration rooms. Its compact structure (900 x 650 x 1000 mm) allows for flexible placement on standard laboratory tables.

Q: What is the process for operating the Wind Turbine Gear Trainer?

A: Users assemble the unit following the English user manual, connect necessary cables, and select between manual or electric drive. The control panel displays speed and output data, while transparent panels and safety shields enable safe observation of gear operations during use.

Q: Can the trainer accommodate different rotor types?

A: Yes, the device supports both 2-bladed and 3-bladed propeller configurations. This flexibility allows educators to demonstrate the influence of rotor design on wind energy harvesting and mechanical output.

Q: What accessories are provided with the Wind Turbine Gear Trainer?

A: Each unit comes with an English instruction manual, a tool kit for maintenance, a set of weights for experimental setups, and connecting cables. These accessories ensure a comprehensive and effective hands-on learning experience.
