Total Pressure Probe

Total Pressure Probe About

Overview

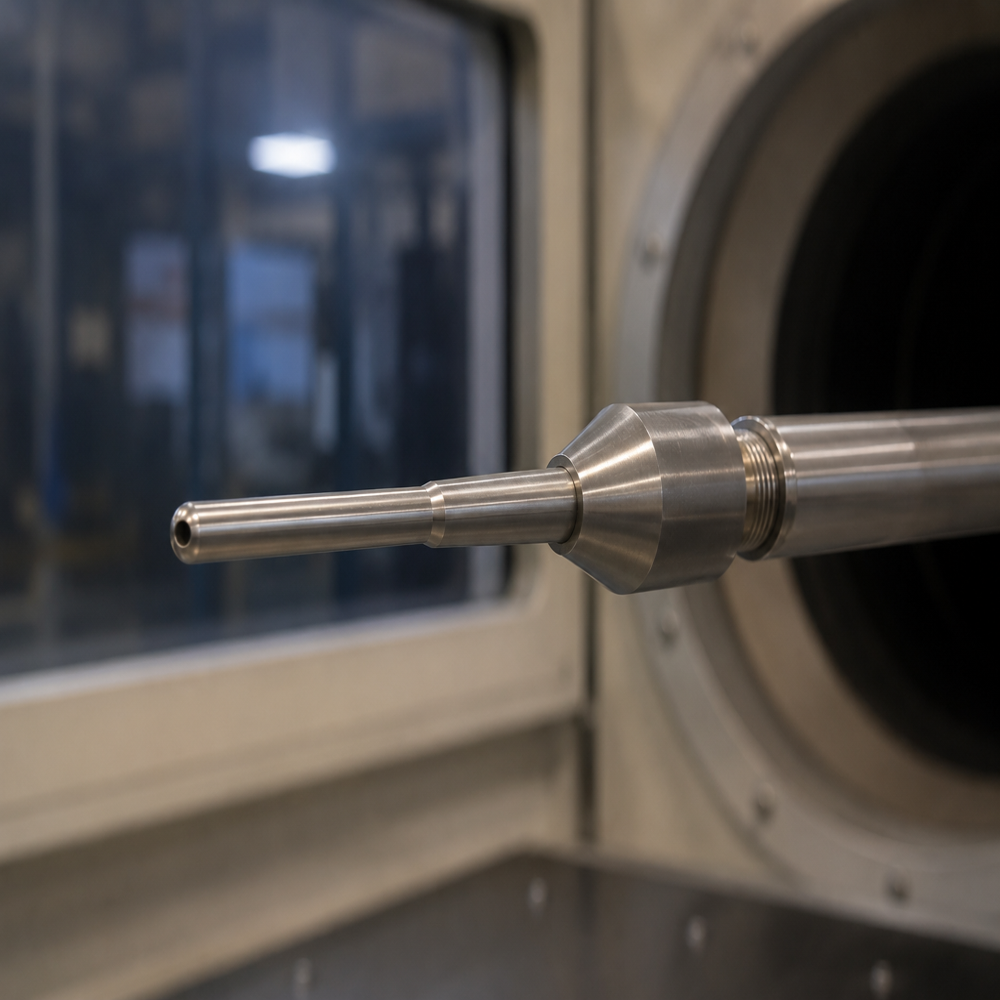

A precision total pressure probe designed for accurate flow velocity and stagnation pressure measurements in wind tunnel and aerodynamic testing applications. The probe is sting-mounted with a threaded base, allowing quick integration and repeatable positioning within the test section.

Key Features

• Accurate Total Pressure Measurement
• Compact, Sting-Mounted Design
• Quick Installation: Threaded base interface
• Robust Construction for Repeated Testing
• Custom Designs Available

Technical Datasheet (Typical)

• Measurement Type: Total (stagnation) pressure
• Mounting: Sting-mounted with threaded connection
• Probe Diameter: 2 mm to 12 mm (customizable)
• Material: Stainless steel / corrosion-resistant alloys
• Pressure Port: Precision-machined inlet

Performance

• Velocity Range: Suitable for subsonic to supersonic flows (setup dependent)
• Accuracy: High repeatability with proper calibration
• Compatibility: Works with standard manometers and pressure transducers

Optional Features

• Multi-hole probe configurations
• Integrated pressure tubing
• Custom probe lengths and diameters
• Handcrafted custom models and probes

Applications

• Airspeed and velocity measurement
• Wind tunnel calibration
• Flow diagnostics and research
• Educational and laboratory experiments

Customization

Each probe can be custom-built to match specific flow regimes, tunnel sizes, and instrumentation requirements.
